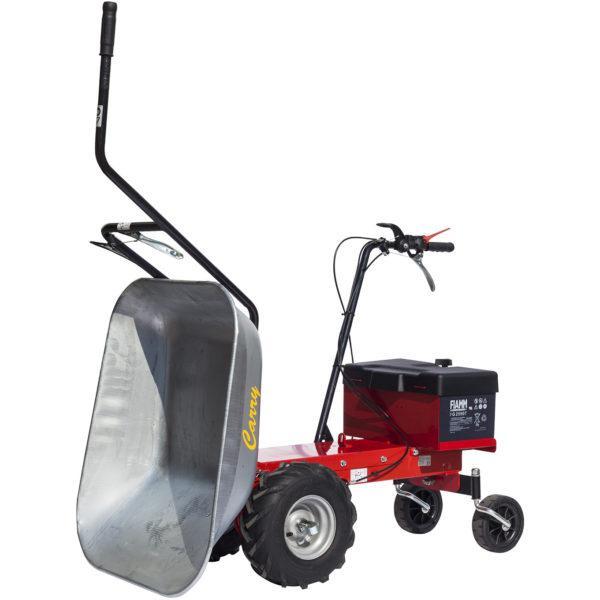

CARRY 24V

Battery powered wheelbarrow ideal for moving loads; convenient and simple to use, it is perfect for transporting small plants, wood, foliage and plant residues. The eco-friendly battery system allows CARRY 24V to work even in closed areas such as sheds, greenhouses or warehouses. The practical optional accessories also allow it to increase its load capacity up to a maximum of 160 liters.

Battery engine
Use: outdoor and indoor
Recommended use: up to 100 Kg

SKU: 920 Category: Wheelbarrows

DOWNLOAD

TECHNICAL SHEET

Technical features
Engines
Optionals
Manuals

Technical features

Trasmission	endless screw in oil bath and belt
Gear-speed	FS + R, forward speed and reverse
Speeds	FS: 3,0 Km/h RS: 1,7 Km/h
Clutch	with belt
Handlebar	not adjustable
Driving levers	with built-in safety system
Working system	galvanized tank with front unloading system and safety control
Capacità	85 litres – 160 litters with the “LDPE collector” (see optionals)
Driving wheels	tractor tires 13×5,00-6" with unlocking device for neutral gear
Weight	93 Kg
Dimensions	65x145x100(h) cm

Engines

	EURO 300W Power supply: electric Starting systems: electric Displacement: – Power: 300 W Fuel tank: –

Optionals

	SNOW CHAINS Description: iron snow chains for standard wheels 13×5,00-6″
	SNOW BLADE Operation: front blade with quick coupling Frame: in sheet metal Working width: 85 cm Adjustments: lateral ± 30 ° Net weight: 18 Kg Dimensions: 85x93x96 (h) cm
	FLAT TANK Operation: sheet metal platform with stackable tipping tank 160 litres Frame: plastic tank with volumetric capacity of 140 litres Transport wheels: two frontal pivoting pneumatics 26×6″ Other: tiltable tank on the front Net weight: 35 Kg Dimensions: 71x108x86(h) cm
	GARDEN TANK Operation: stackable extension for galvanized transport tank Description: plastic tank with volumetric capacity of 140 litres Weight net: 6 Kg Notes: does not increase the maximum capacity of the machine (kg)
	REAR PNEUMATICS Description: rear pivoting tyres on a floating axle
