Z8

Semi professional tiller with horizontal engine suitable for domestic and agricultural use. This model is exceptionally effective in medium difficulty jobs and in the cultivation of medium / large areas. It is perfect for working all types of terrain, thanks to its balanced weight-to-power ratio, it guarantees soil penetration in all conditions. Designed to give the best performance in its Labour version. (for plowing)



3 engines available
Use: semi-professional
Recommendation: all types of soil, up to 1.000 sqm

SKU: 11 Category:
  • Technical features
  • Engines
  • Optionals
  • MANUALS

Technical features

Trasmission

gears and chain in oil bath and belts

Gear-speed

2 (+2) FS + R, two tilling gears with variable rotation speed through belt inversion + reverse

Speeds

Clutch

with belt

Power take off
Handlebar

adjustable in height and by side

Driving levers

ergonomic with built-in safety system

Tool

24 blades, Ø 34 cm, 95 cm working width – adjustable to 65 cm
24 blades, Ø 33 cm, 82 cm working width – adjustable to 58 cm

Speed rotation

(2+1): belt in standard position 79-101 rpm, belt in rapid position 110-142 rpm
(Labour): belt in standard position 23,4-101 rpm, belt in rapid position 32,6-141 rpm

Other

rear adjustable spur (4 positions)
sheet metal protective casing
tree saver discs

Transport wheel

Weight

85 Kg

Dimensions

82x162x118(h) cm

Engines

B&S CR950

Power supply: gasoline

Starting systems: recoil

Displacement: 208 cc

Power: 3,95 Kw

Fuel tank: 3,1 liters

HONDA GX160

Power supply: gasoline

Starting systems: recoil

Displacement: 163 cc

Power: 3,6 Kw

Fuel tank: 3,1 liters

EURO 212 OHV

Power supply: gasoline

Starting systems: recoil

Displacement: 212 cc

Power: 4,0 Kw

Fuel tank: 3,0 liters

Optionals

z8 labour 001

KIT LABOUR

Description: plowing kit, available only for Z8 Labour

Composition:

tractor wheels 5,00-10

wheels ratchets,

wheels ballasts (20 kg each),

front ballast (15 kg),

reversible plow

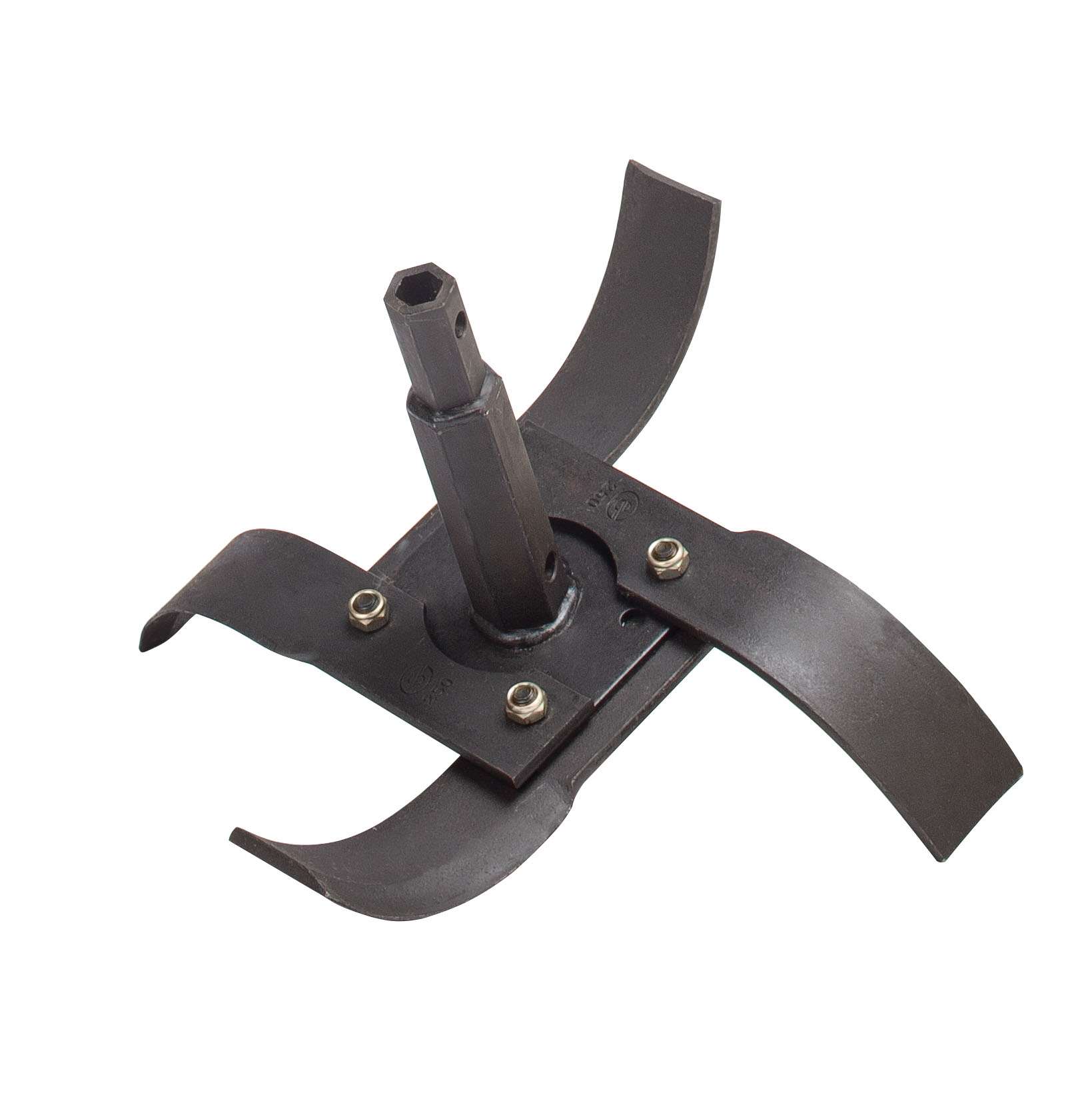

ROTAVATOR 125

Description: rotavator extension to 125 cm with iron bolted knives

RIDGING PLOUGH

Description: adjustable, quick connection

TRANSPORT WHEELS

Description: quick-lift front wheel

TRANSPORT WHEELS

Description: full wheels 42×4 cm to be set on tree saver discs
