RTT 3
RTT3 is powerful and fast, this cultivator is designed and built to meet, even in the most difficult situations the needs of all horticulturists. RTT3 is ideal for finely shredding the earth and in the preparation of the seed bed on soft and medium compact soils. Its powerful engine models allow precise and fast work. The high-quality materials used, the meticulous checks during assembly and the balanced power-to-weight ratio are a guarantee of high work output.
2 engines models
Use: amateur
Recomended use: soft/medium soil, up to 800 sqm
DOWNLOAD
TECHNICAL SHEET- Technical features
- Engines
- Optionals
- MANUALS
Technical features
| Trasmission |
gears and chain in oil bath and belts |
|---|---|
| Gear-speed |
(2+2) Two forward speed, two reverse speed |
| Speeds |
FS: 1,1 – 2,1 Km/hRS: 0,9 – 1,8 Km/h |
| Clutch |
double belt system |
| Handlebar |
adjustable in height and by side (B&S)Handlebar adjustable in height (EURO 212 OHV) |
| Driving levers |
handy with double built-in safety system |
| Tool |
20 blades16 blades, working width 60 cm, working depth 32 cm |
| Speed rotation |
270 rpm |
| Other |
rear adjustable spursheet metal protective casing |
| Driving wheels |
tractor tires 13×5,00-6" with unlocking device for neutral gear |
| Weight |
74-75 Kg |
| Dimensions |
63x151x109(h) cm |
Engines
 |
B&S CR950Power supply: gasoline Starting systems: recoil Displacement: 208 cc Power: 3,96 kw Fuel tank: 3,1 liters |
 |
EURO 212 OHVPower supply: gasoline Starting systems: recoil Displacement: 212 cc Power: 4,0 kw Fuel tank: 3,0 liters |
Optionals
 |
RIDGING PLOUGHDescription: fixed wings, quick connection |
 |

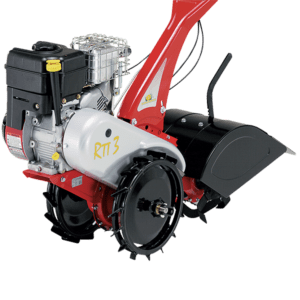

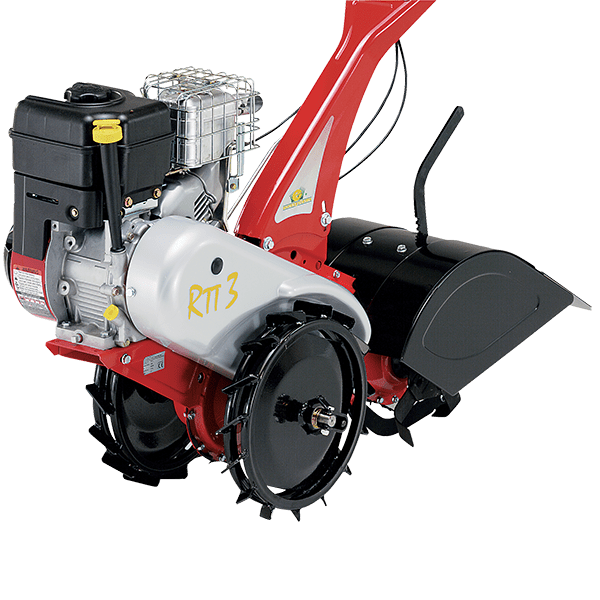

ROTOVATOR KIT 32Description: rotavator shortening + iron wheels Dimensions: working width 32 cm, wheels Ø 35×5 cm |
MANUALS
- Operating instructions Rtt3 – (latest version 2022)
- Operating instructions Rtt3 – (version in use until 2020)
- RTT3 V20 exploded view – (latest version 2022)
- Esploso RTT3 – (ultima versione 2023)
