RTT 2

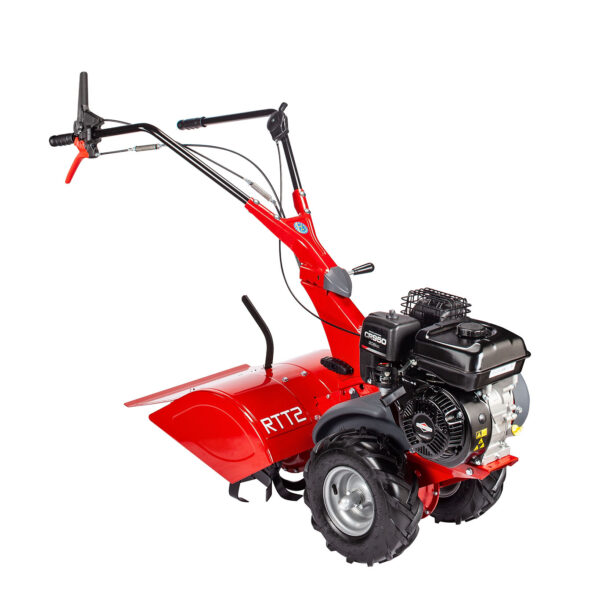

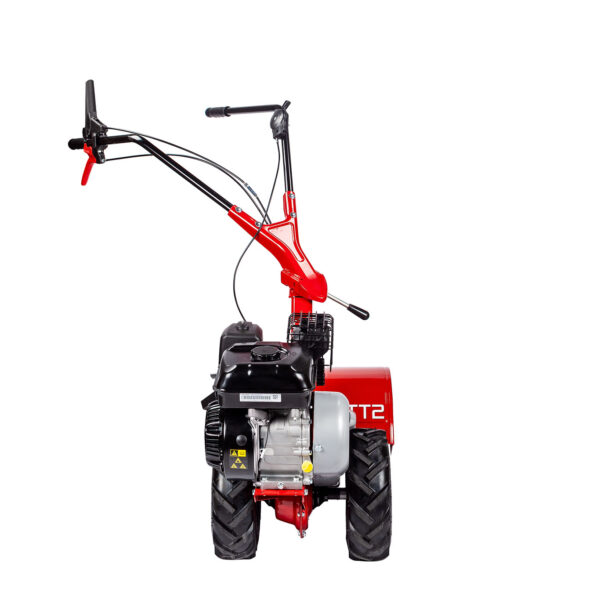

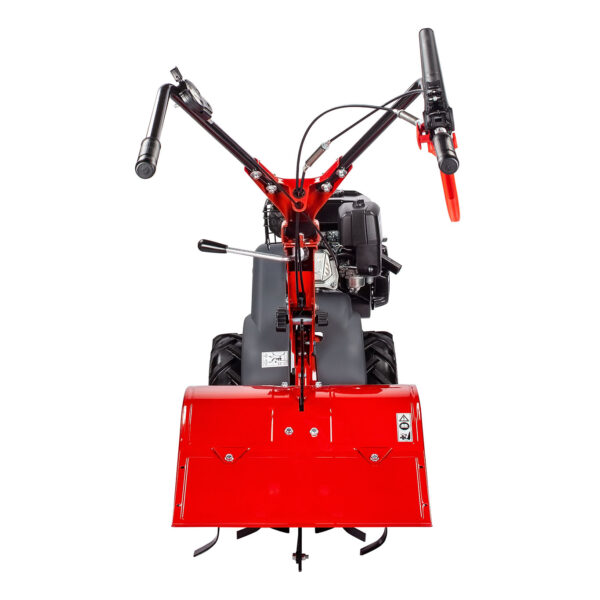

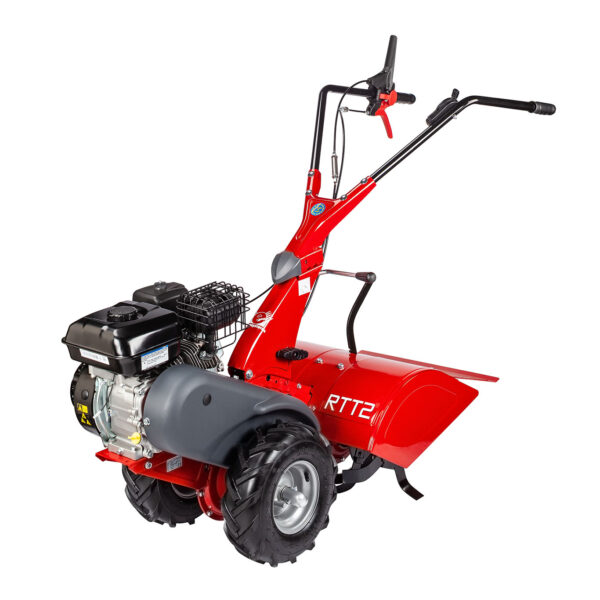

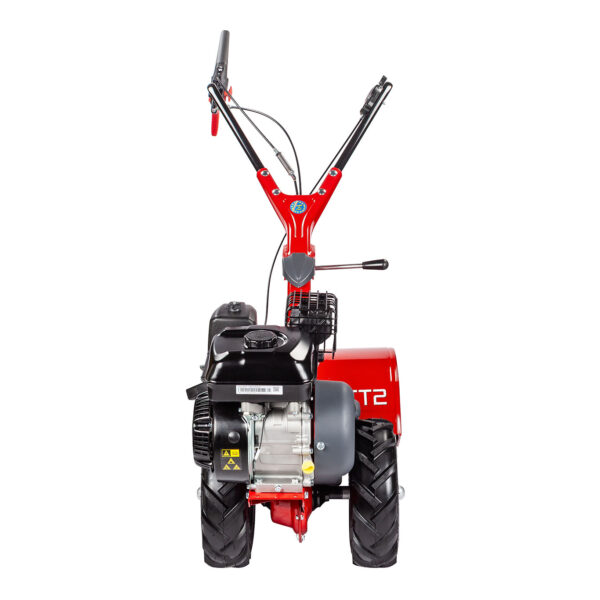

Robust and easy to handle RTT 2 is suitable for working light/medium-compacted soils which were not even previously plowed. The traction wheels with tractor and semi-differential profiles make driving simple and safe. This two-wheel tractor is ideal for finely shredding the soil and quickly preparing the seed bed by breaking the upper crust, i.e. reducing the earth to finely crushed, well-ventilated, soft and ready to grow soil.
4 engines available
Use: amateur
Recomended use: soft/medium soil, up to 600 sqm
DOWNLOAD
TECHNICAL SHEET- Technical features
- Engines
- Optionals
- MANUALS
Technical features
| Trasmission |
gears and chain in oil bath and belts |
|---|---|
| Gear-speed |
FS + R, forward speed and reverse – rotavator rotation speed not variable |
| Speeds |
FS: 1,1 Km/hRS: 0,9 Km/h |
| Clutch |
double belt system |
| Handlebar |
adjustable in height and by side (B&S and Honda)adjustable in height (7+1 positions) and by side (3), packable |
| Driving levers |
handy with double built-in safety system |
| Tool |
16 riveted steel knives16 blades, working width 50 cm, working depth 32 cm |
| Speed rotation |
270 rpm |
| Other |
rear adjustable spursheet metal protective casing |
| Driving wheels |
tractor tires 13×5,00-6" with unlocking device for neutral gear |
| Dimensions |
53x151x109(h) cm |
Engines
 |
B&S CR950Power supply: gasoline Starting systems: recoil Displacement: 208 cc Power: 3,96 kw Fuel tank: 3,1 liters |
 |
HONDA GP160Power supply: gasoline Starting systems: recoil Displacement: 163 cc Power: 3.6 kw Fuel tank: 3,1 liters |
 |
EURO 182 OHVPower supply: gasoline Starting systems: recoil Displacement: 182 cc Power: 3,1 kw Fuel tank: 3,0 liters |
 |
EURO R210Power supply: gasoline Starting systems: recoil Displacement: 212 cc Power: 4,2 kw Fuel tank: 3,6 liters |
Optionals
 |
RIDGING PLOUGHDescription: fixed wings, quick connection |
 |
ROTOVATOR KIT 32Description: rotavator shortening + iron wheels dimensions: working width 32 cm, wheels Ø 35×5 cm |
MANUALS
- Operating instructions Rtt2 – (latest version 2022)
- Operating instructions Rtt2 – (version until to 2020)
- Spare parts list Rtt2-2C – (version – double belt 2021)
- RTT2-2C V20 exploded view – (latest version with various improvements 2022)
- RTT2 exploded view – (latest version 2023)
