SWEEPY

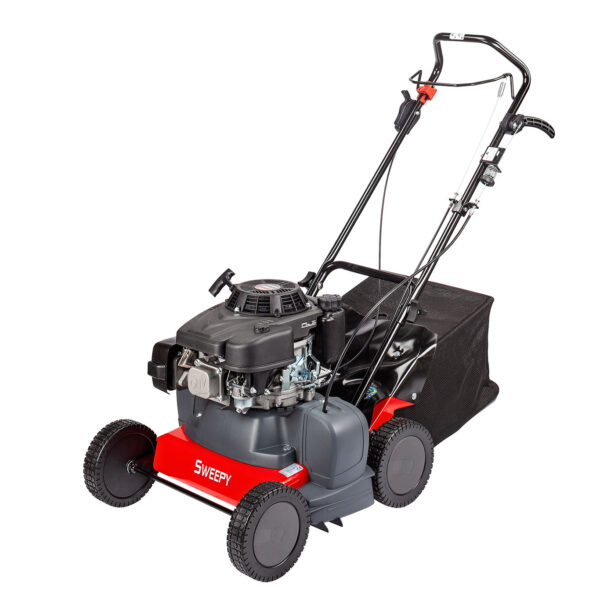

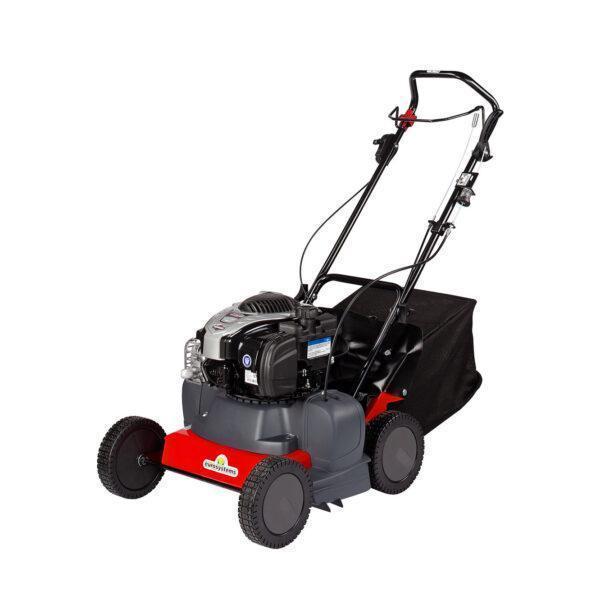

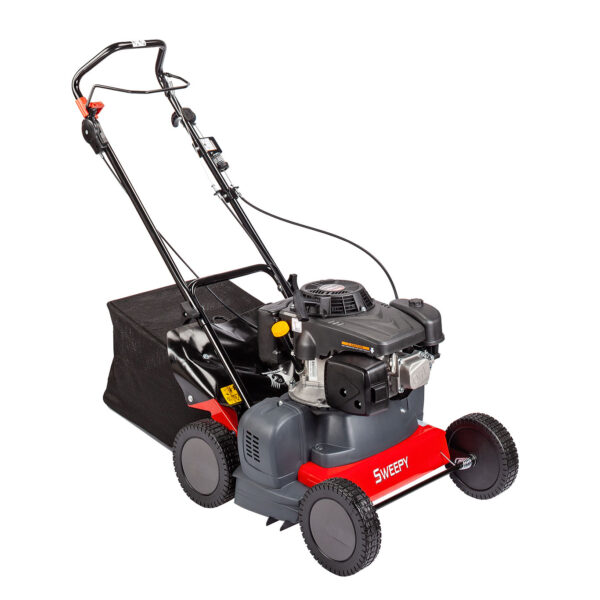

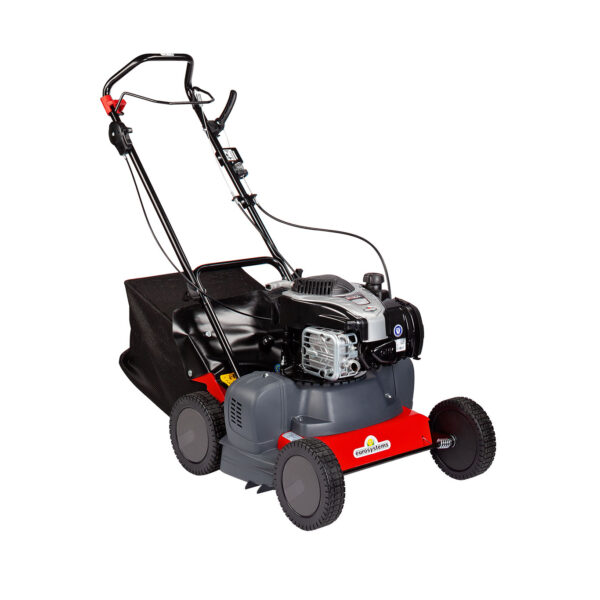

Compact and with high performance, Sweepy is a motor brush which was mainly designed for the cleaning and the maintenance of synthetic lawn; the adjustable height brush allows the user to revive the synthetic lawn turf by cleaning and collecting various kinds of residues.

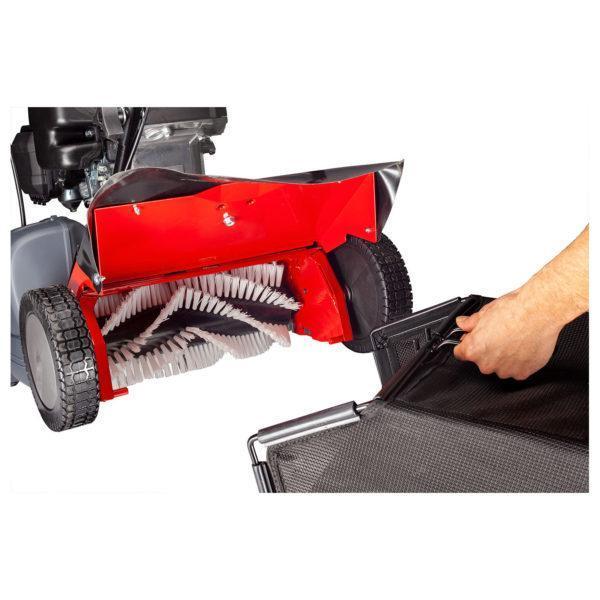

The collection bag is available in two versions : 1) standard one and 2) with sieve, which is useful for fields showing filling materials like sand or plastic granules.
DOWNLOAD
TECHNICAL SHEET- Technical features
- Engines
- Optionals
- MANUALS
Technical features
| Trasmission |
trapezoidal belt (patented by Eurosystems) |
|---|---|
| Gear-speed |
– |
| Speeds |
to be pushed |
| Handlebar |
foldable |
| Driving levers |
with built-in safety system |
| Tool |
PP helicoidal brush, working width 42 cm, Ø 16 cm, 2600 rpm |
| Rotation |
2.600 rpm |
| Sacco raccolta |
included – nylon bag 45 litres |
| Wheels |
Ø 20 cm, ball bearings, cleaning automatic system |
| Weight |
34 Kg |
| Dimensions |
56x121x100(h) cm |
Engines
 |
B&S 675 EXi-SERIESPower supply: gasoline Starting systems: recoil Displacement: 163 cc Power: 2,74 Kw Fuel tank: 1.0 liters |
 |
HONDA GCV 170Power supply: gasoline Starting systems: recoil Displacement: 166 cc Power: 3.6 kw Fuel tank: 0,9 litres |
 |
EURO RV170S-ProPower supply: gasoline Starting systems: recoil Displacement: 170 cc Power: 3,1 kw Fuel tank: 0.8 liters |
 |
EURO 196 OHVPower supply: gasoline Starting systems: recoil Displacement: 196 cc Power: 3.8 kw Fuel tank: 0.9 liters |
Optionals
 |
SIEVE BAGDescription: bag with honeycomb bottom to release the filling material to the ground Capacity: 45 liters |
MANUALS
- Operating instructions Sweepy – (latest version 2022)
- Sweepy exploded view – (latest version 2023)
