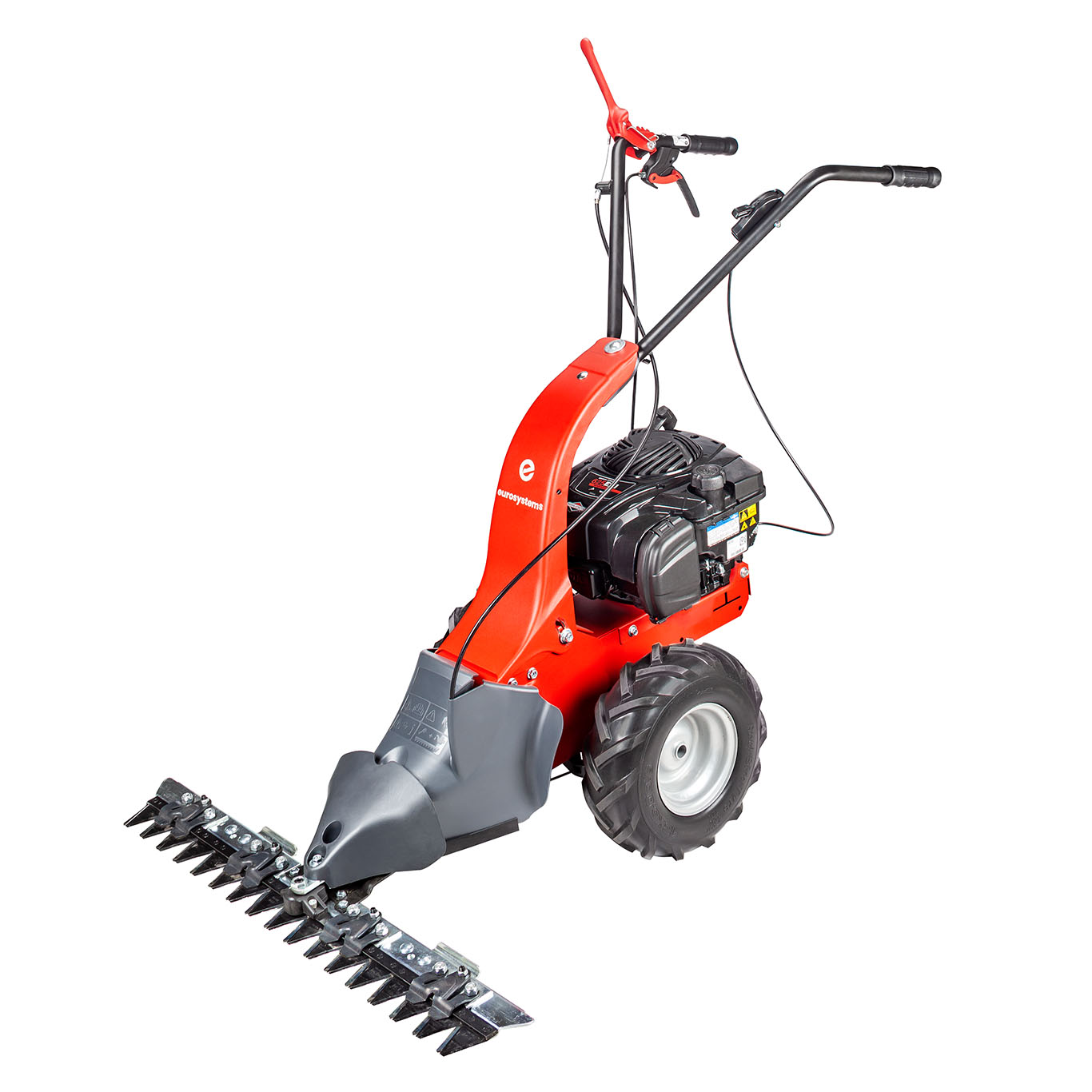

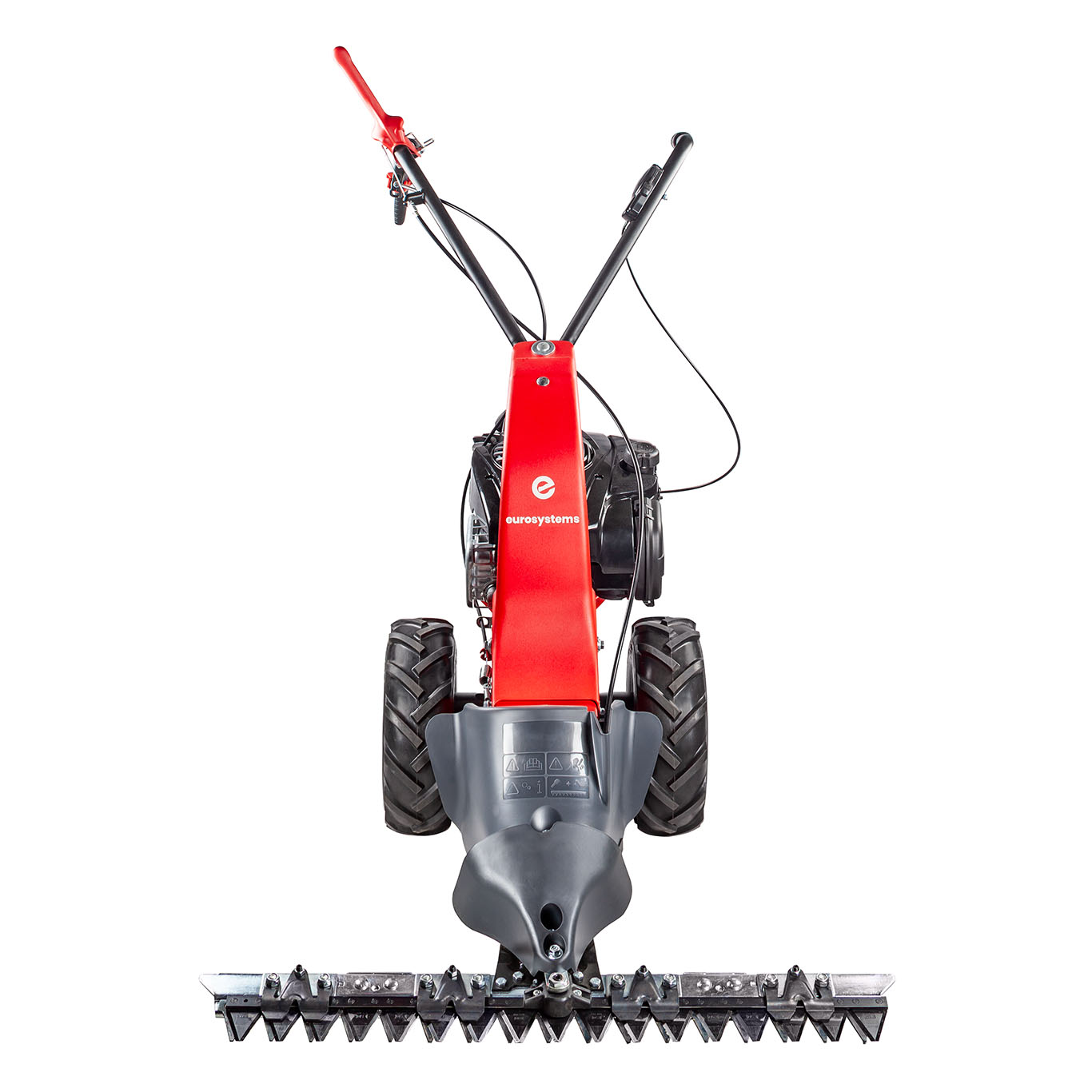

M90

eM210

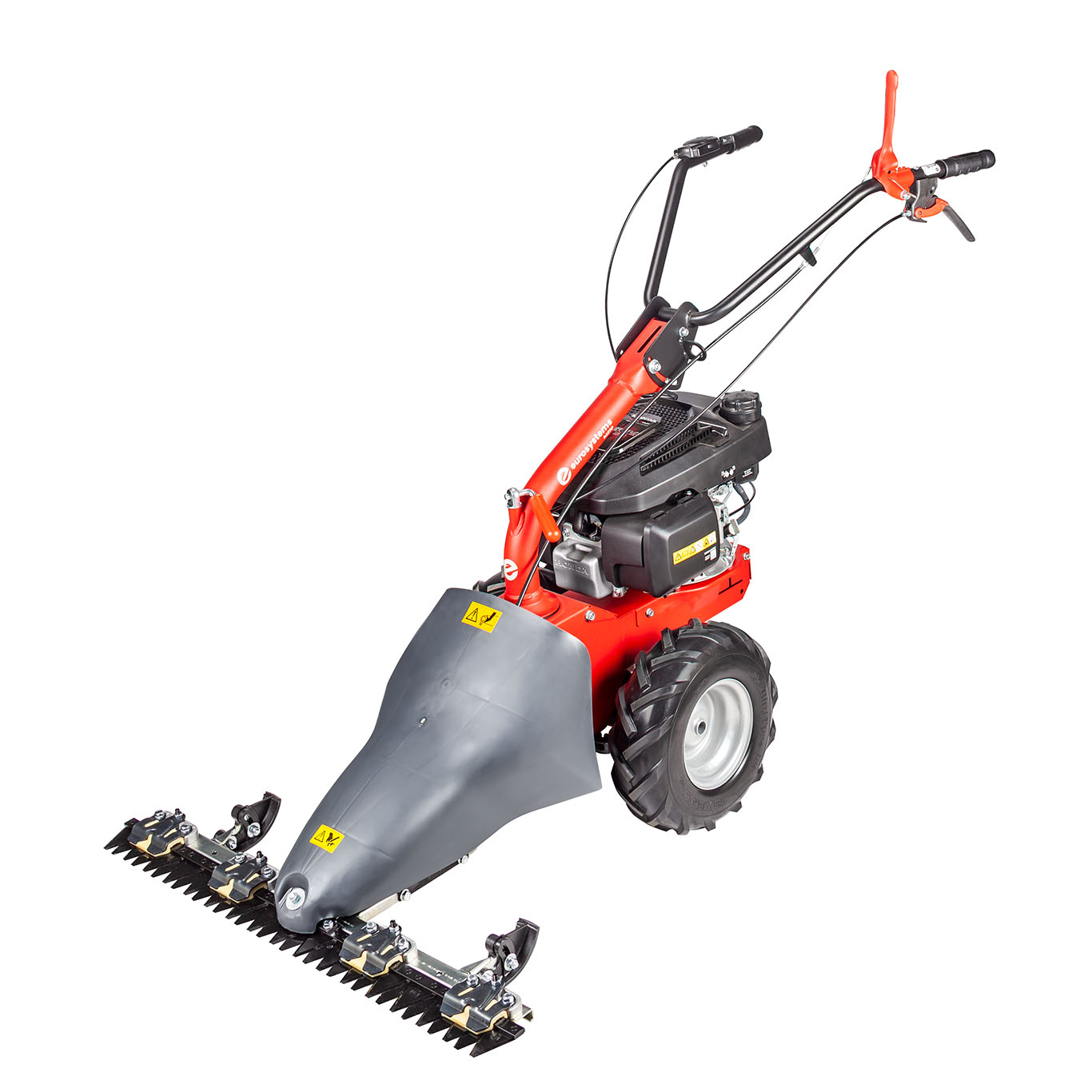

M210

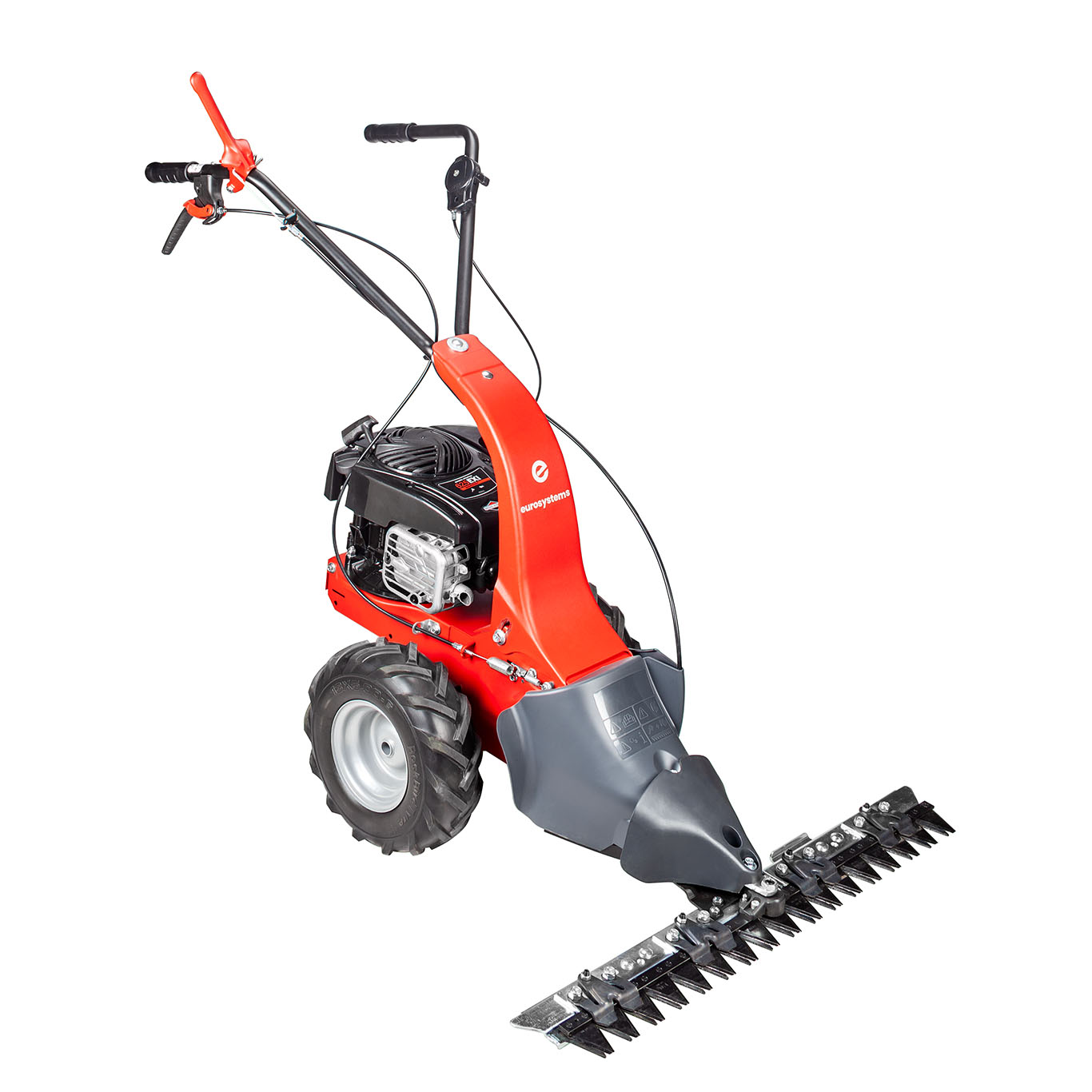

M90 is solid and extremely easy to use, it is designed and built to be used safely and effortlessly. The solid anti-puncture wheels, the anti-vibration handlebar support, the double floating deflector and the patented blade movement are guarantee of an exceptional strength and a fine quality of cutting. Recommended for surfaces up to 5.000 square meters.



Cutting movement: single blade
4 engines models
Recommended use: up to 5.000 sm

SKU: 0001 Category:

DOWNLOAD

TECHNICAL SHEET
  • Technical features
  • Engines
  • Optionals
  • Manuals

Technical features

Trasmission

endless screw in oil bath and belt
Gear-speed

MA, single forward gear
Speeds

2,6 km/h
Handlebar

adjustable in height
Driving levers

ergonomic with built-in safety system
Tool

cutter bar
Movement

Patented by Eurosystems – Cartridge with grease nipple and connecting rod with bearings
Cutting

880 strokes / min
fixed working height 2 cm
working width 87 cm
Other

sheet metal skids, double floating hood
Driving wheels

tractor, anti-puncture 13×5,00-6"
Weight

52 – 54 Kg
Dimensions

93x138x104(h) cm

Engines

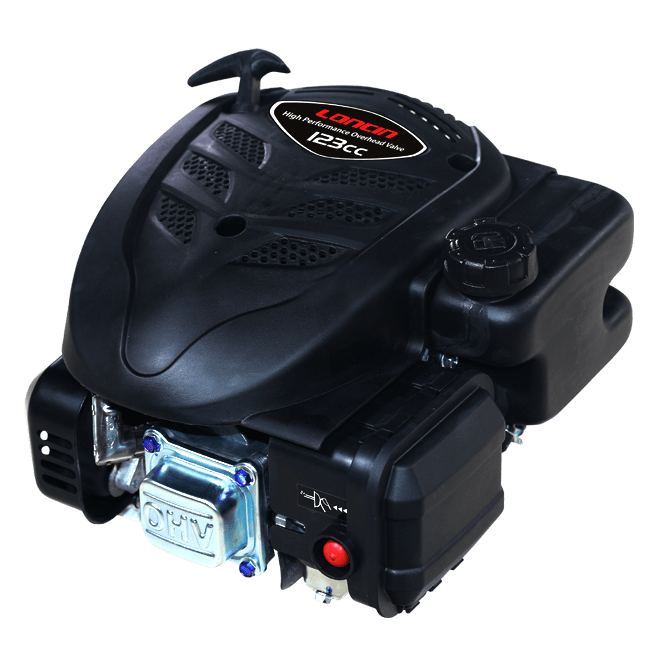

EURO 123 OHV

Power supply: gasoline

Starting systems: recoil

Displacement: 123 cc

Power: 2.2 kw

Fuel tank: 0.9 liters

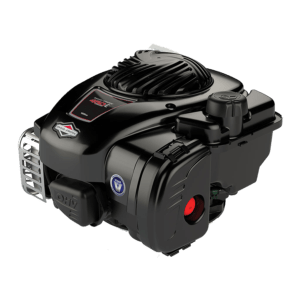

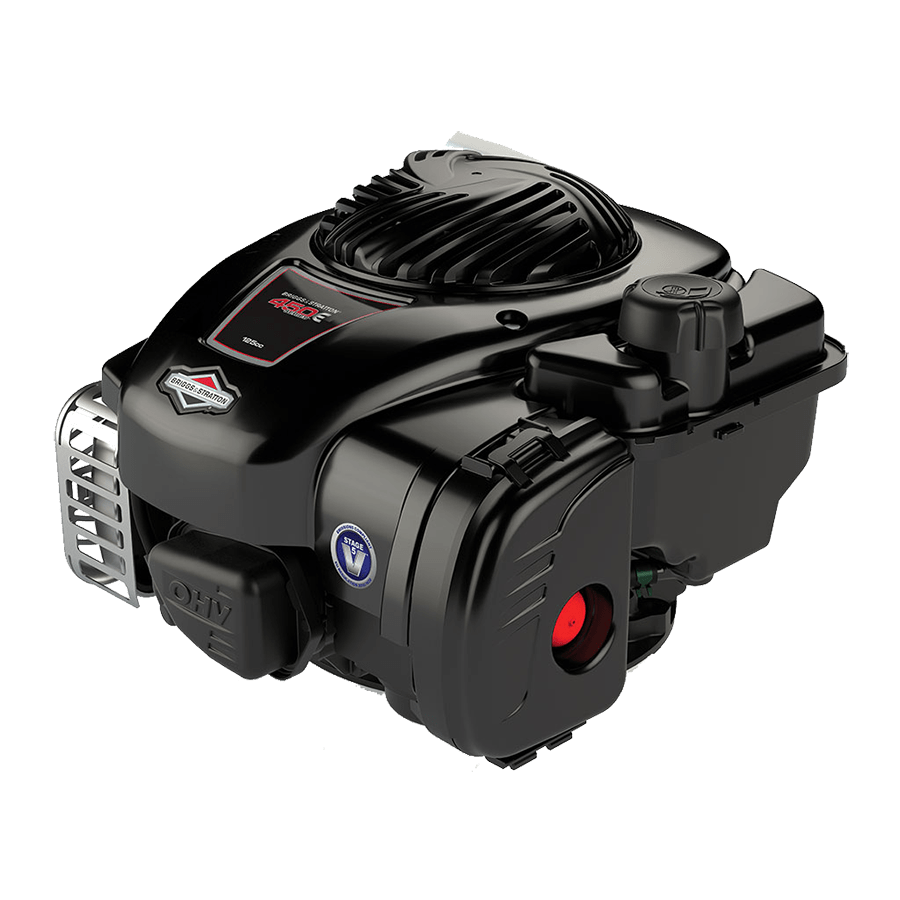

B&S 450 E-SERIES

Power supply: gasoline

Starting systems: recoil

Displacement: 125 cc

Power: 1.8 kw

Fuel tank: 0.8 liters

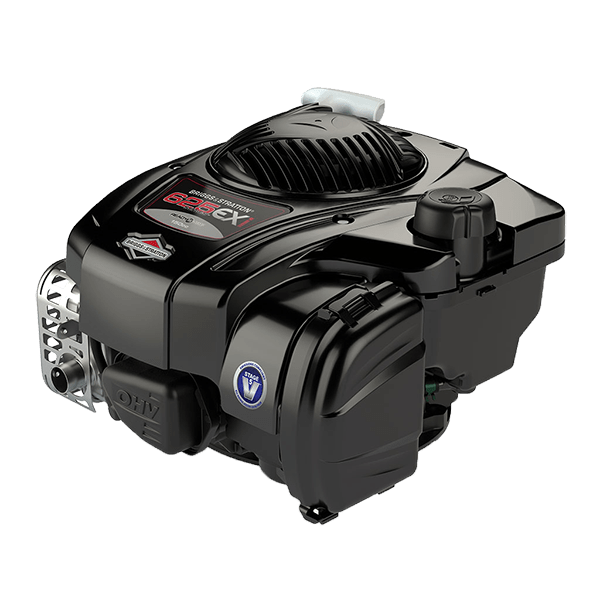

B&S 625 EXi-SERIES

Power supply: gasoline

Starting systems: recoil

Displacement: 150 cc

Power: 2.27 kw

Fuel tank: 0.8 liters

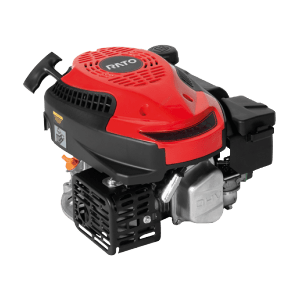

EURO RV170S-Pro

Power supply: gasoline

Starting systems: recoil

Displacement: 170 cc

Power: 3,1 kw

Fuel tank: 0.8 liters

Optionals

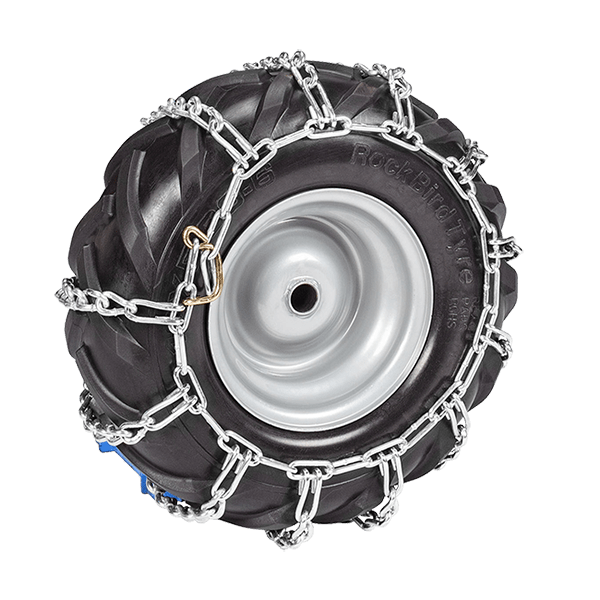

SNOW CHAINS

Description: iron snow chains for wheels 13×5.00-5 “

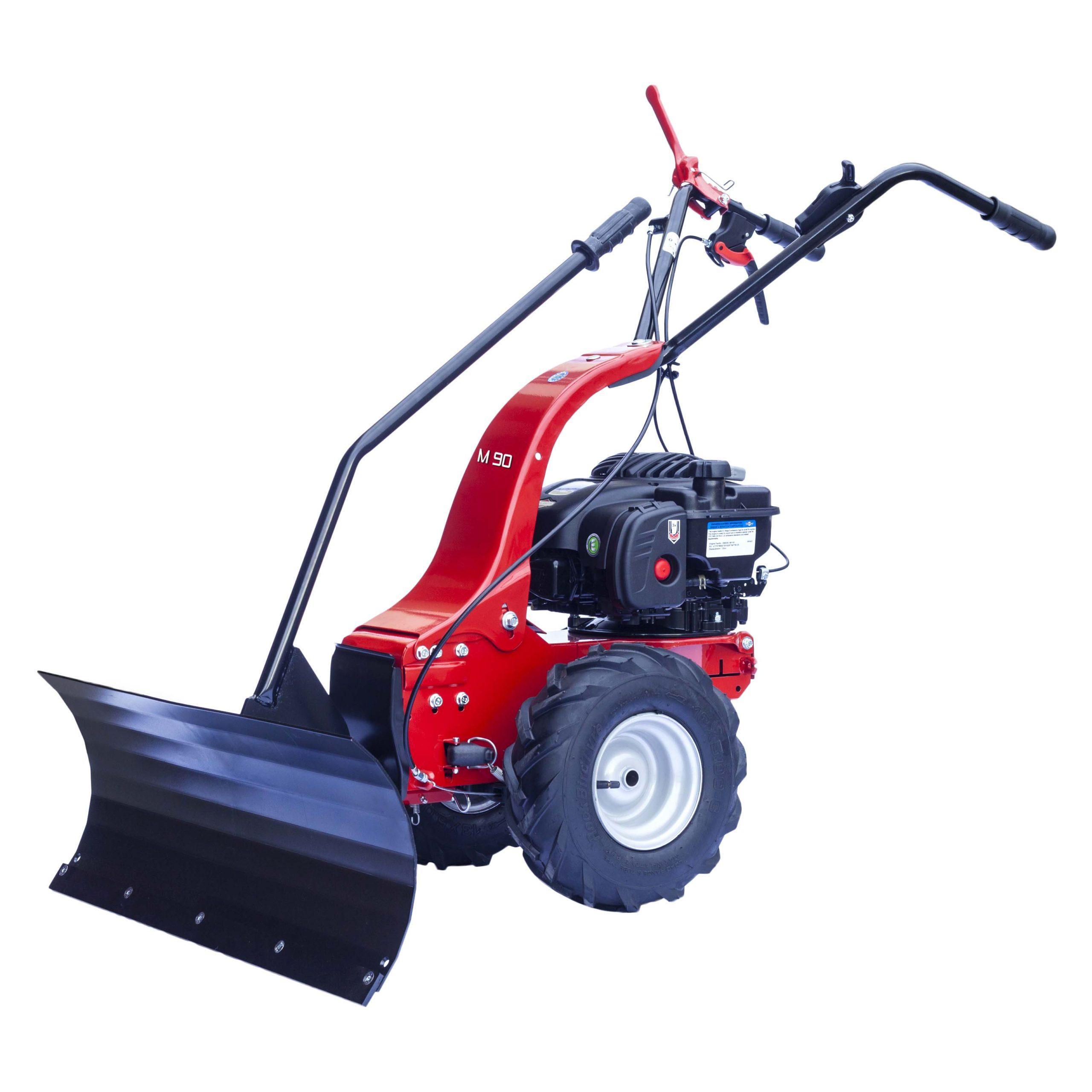

SNOW BLADE

Operation: front blade with quick coupling

Frame: in sheet metal

Working width: 85 cm

Adjustments: lateral ± 30 °

Net weight: 18 Kg

Dimensions: 85x93x96 (h) cm
