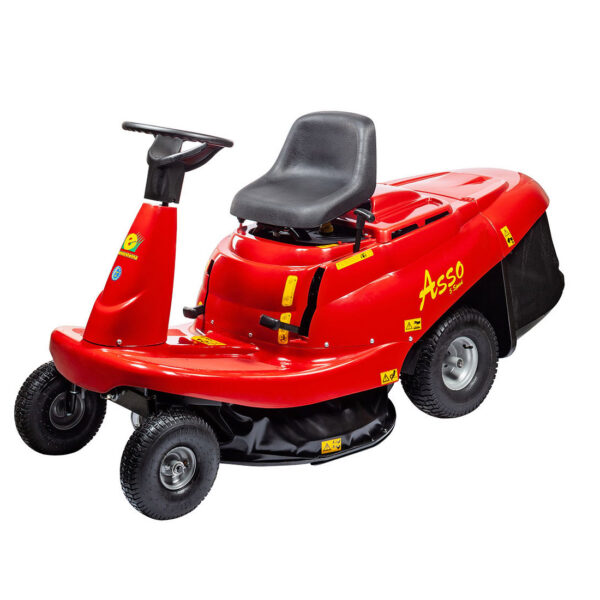

ASSO 67
Economic and compact version of the Eurosystems ride-on mower line; ASSO 67 with its 67 cm deck and its 150-liter rear collector is perfect for managing small and medium-sized surfaces (up to about 2.000 sqm). The mechanical transaxle with 5 -speeds is ideal for open spaces showing few obstacles. The multiple safety systems make this machine reliable and easy to drive.
– Mechanical transmission
– 2 engines models
– Recommended use: up to 2.000 sqm
DOWNLOAD
TECHNICAL SHEET- Technical features
- Engines
- Optionals
- MANUALS
Technical features
| Trasmission |
rear mechanical transmission with differential |
|---|---|
| Gear-speed |
(5+1) five forward speed, one reverse |
| Speeds |
FS: 1,9 – 2,5 – 4,0 – 6,0 – 7,7 Km/hRS: 3,0 Km/h |
| Lama di taglio |
increased grass-collection bladeworking width 67 cm |
| Regolazioni |
5 different adjustment, 4±10 cm |
| Sistema raccolta |

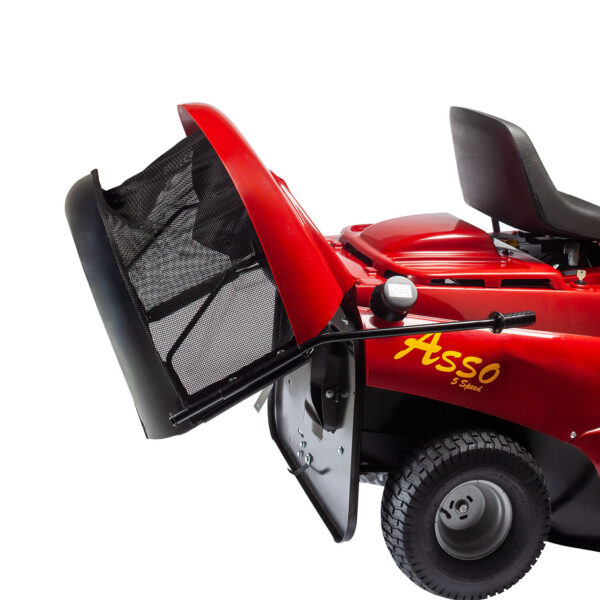

rear discharge with 150 litres grass collector |
| Sistemi di sicurezza |
triple safety starting system, blade stop with sensor on the seat, blade stop with sensor on the collector |
| Wheels |
front wheels 11×4,00-4"rear wheels 15×6,00-6" |
| Weight |
143 Kg |
| Dimensions |
82x195x104(h) cm |
Engines
 |
B&S 21R5 POWER BUILTPower supply: gasoline Starting system: indipendent, electric Displacement: 344 cc Power: 7,7 Kw Fuel tank: independent, 5.0 liters |
 |
EURO 352Power supply: gasoline Starting system: indipendent, electric Displacement: 352 cc Power: 7,2 Kw Fuel tank: independent, 5.0 liters |
Optionals
 |
REAR HOOKDescription: rear hook for trailer |
 |
DEFLECTORDescription: deflector for rear discharge – no grass bag |
MANUALS
- Operating instructions Asso – (latest version 2022)
- Exploded view Asso67– (latest version 2023)
