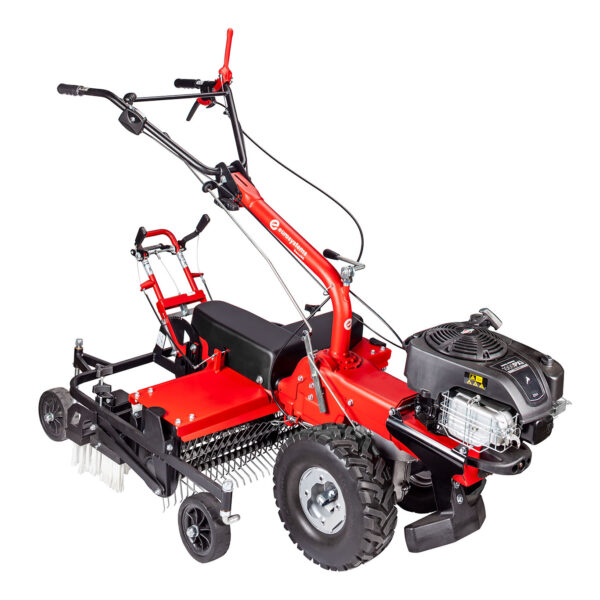

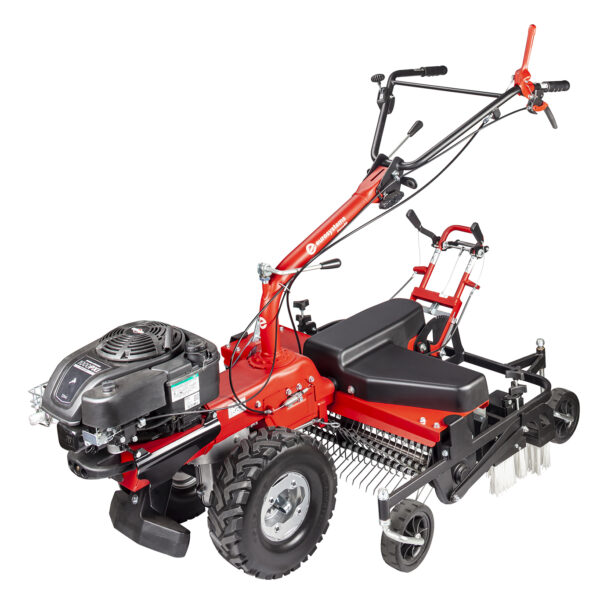

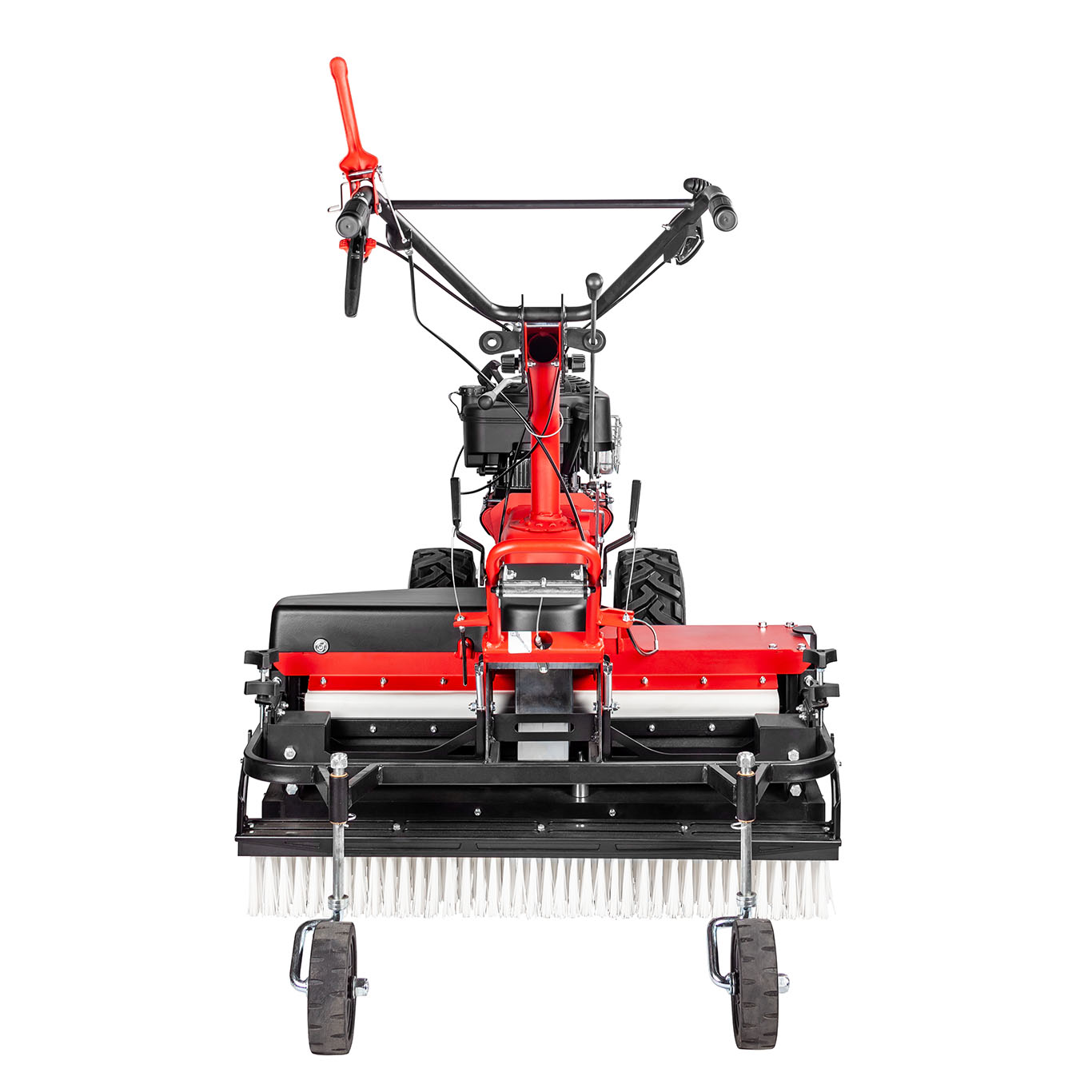

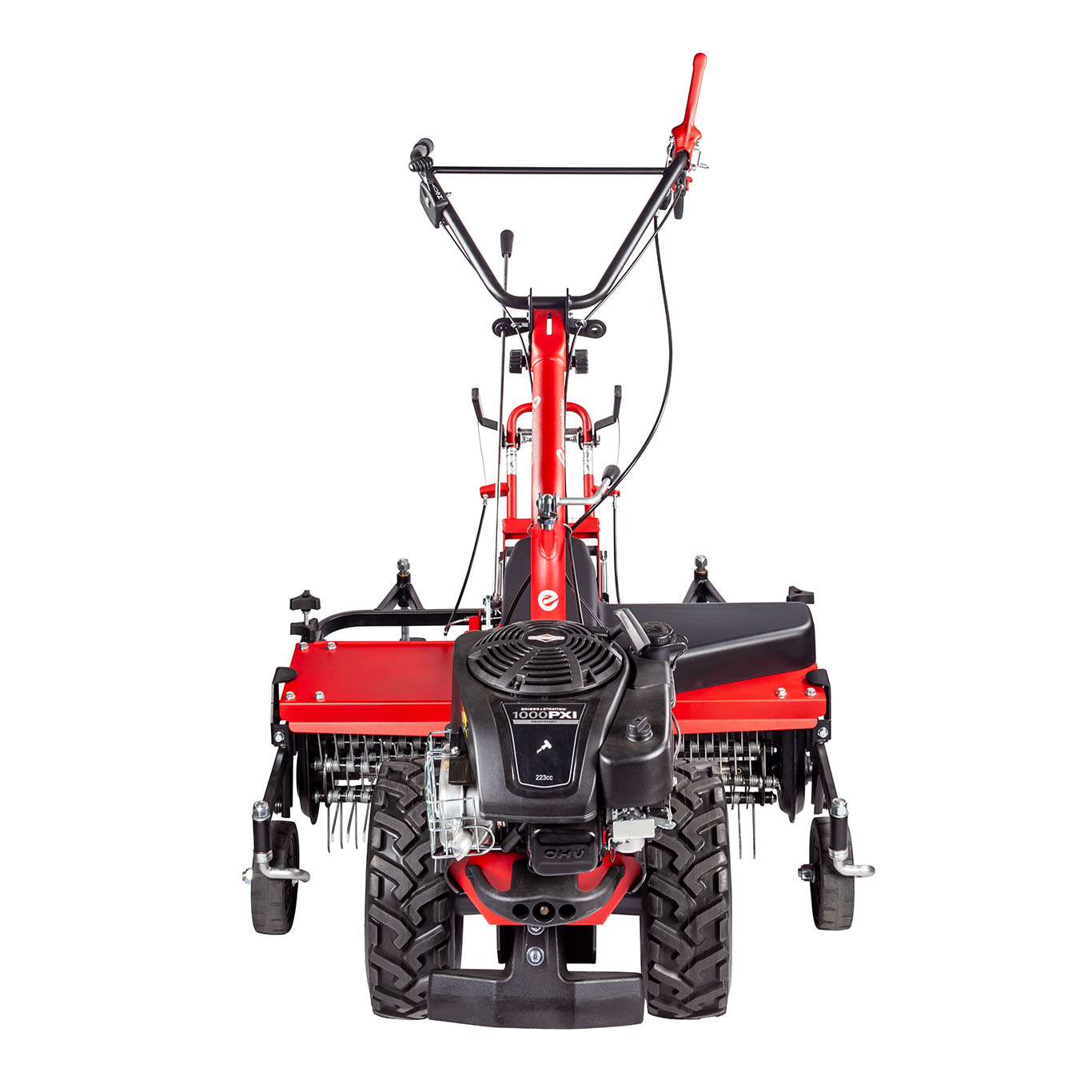

DECO90

The Deco90 is the solution you’re looking for in brushing and de-compacting synthetic lawns.

The Deco90 features 156 springs to comb the synthetic fibres in the grass and recover granules crushed or packed in by foot traffic or high summer temperatures.

Two rear brushes distribute infill material over the entire lawn and drag foreign bodies outwards. This is achieved by the first brush oscillating with adjustable height and the second by gravity to achieve a desired finish.

This machine is highly suitable for dry and wet surface use and can work large areas quickly with its 80cm de-compacting working width, and 90cm brushing width. These two functions are independent and equipped with different levels of regulation, making the Deco90 an essential tool for the maintenance of both gardens and sports fields where the Deco90 ensures adequate results for regular interactions with sporting materials, such as the bounciness of a ball. Give new life to your artificial turf and restore the best interactions for walking, running or sports participation.

COD: 91 Categoria:

DOWNLOAD

SCHEDA TECNICA
  • Informazioni tecniche
  • Engines
  • MANUALS

Informazioni tecniche

Trasmissione

ingranaggi e vite senza fine in bagno d'olio e cinghie

Sistema di lavoro

Rotore 80 cm con 156 molle, velocità di rotazione 142 rpm – spazzole (x2) 90 cm di cui una oscillante e una fissa, setole 95 mm in polipropilene – leve d’innesto indipendenti per rotore e spazzola

Regolazioni

profondità di lavoro del rotore a molle 0 5 cm – regolazione di precisione altezza spazzola 0 1 cm

Manubrio

stegola regolabile verticalmente e lateralmente

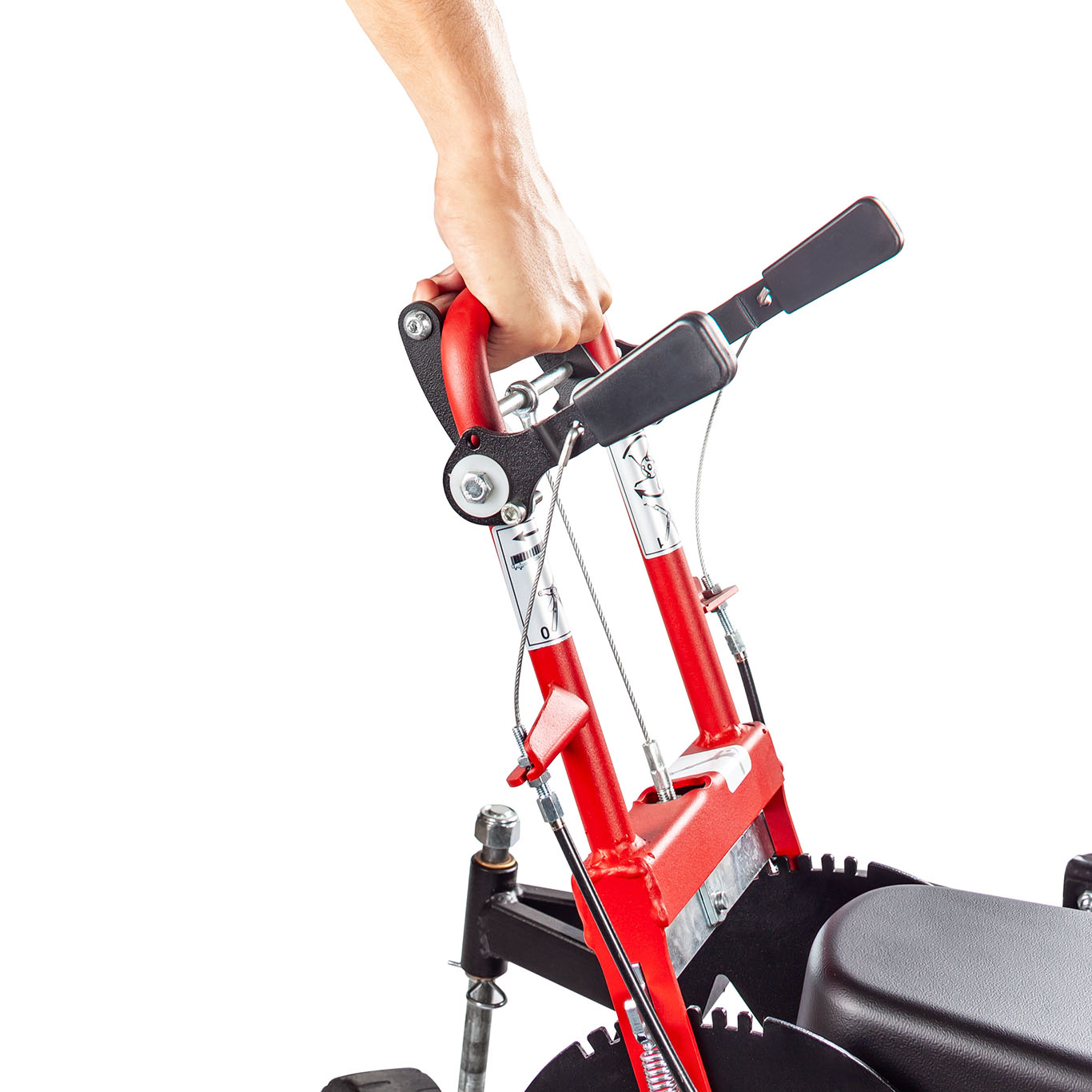

Leve di guida

con innesto di sicurezza integrato a rilascio rapido

Ruote motrici

tractor, pneumatiche 15×6,00-6"

Peso

143 Kg

Dimensioni

105x168x95(H)

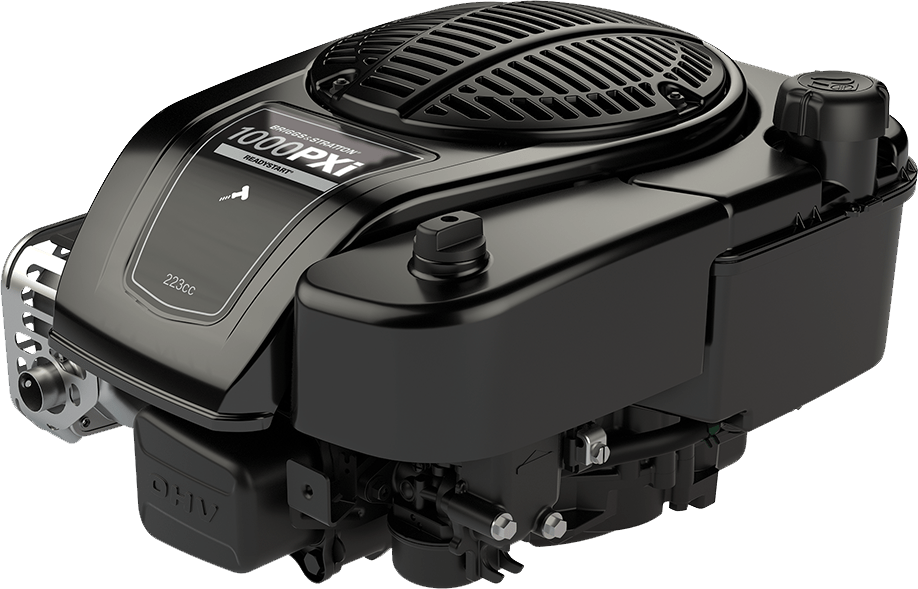

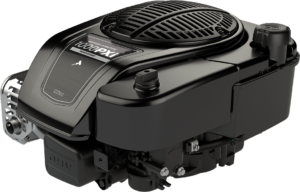

Engines

B&S 1000 PXi-Series

Power supply: gasoline

Starting systems: recoil

Displacement: 223 cc

Power: 4.17 Kw

Fuel tank: 1,1 liters

MANUALS

Exploded view of synthetic lawn decompactor (latest version 2023)
