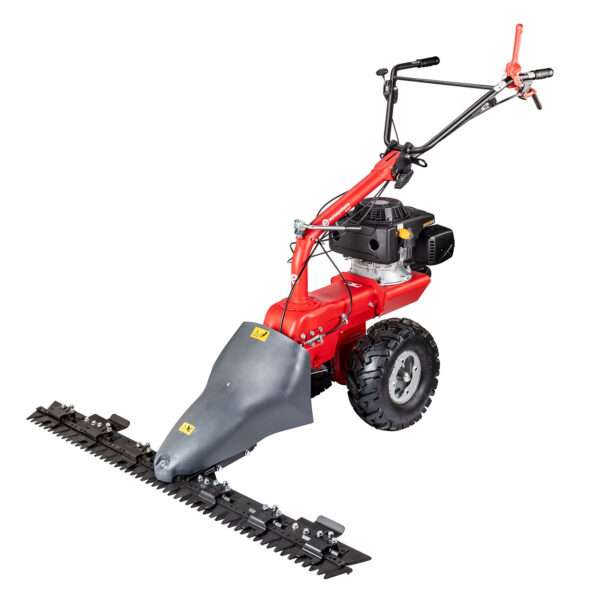

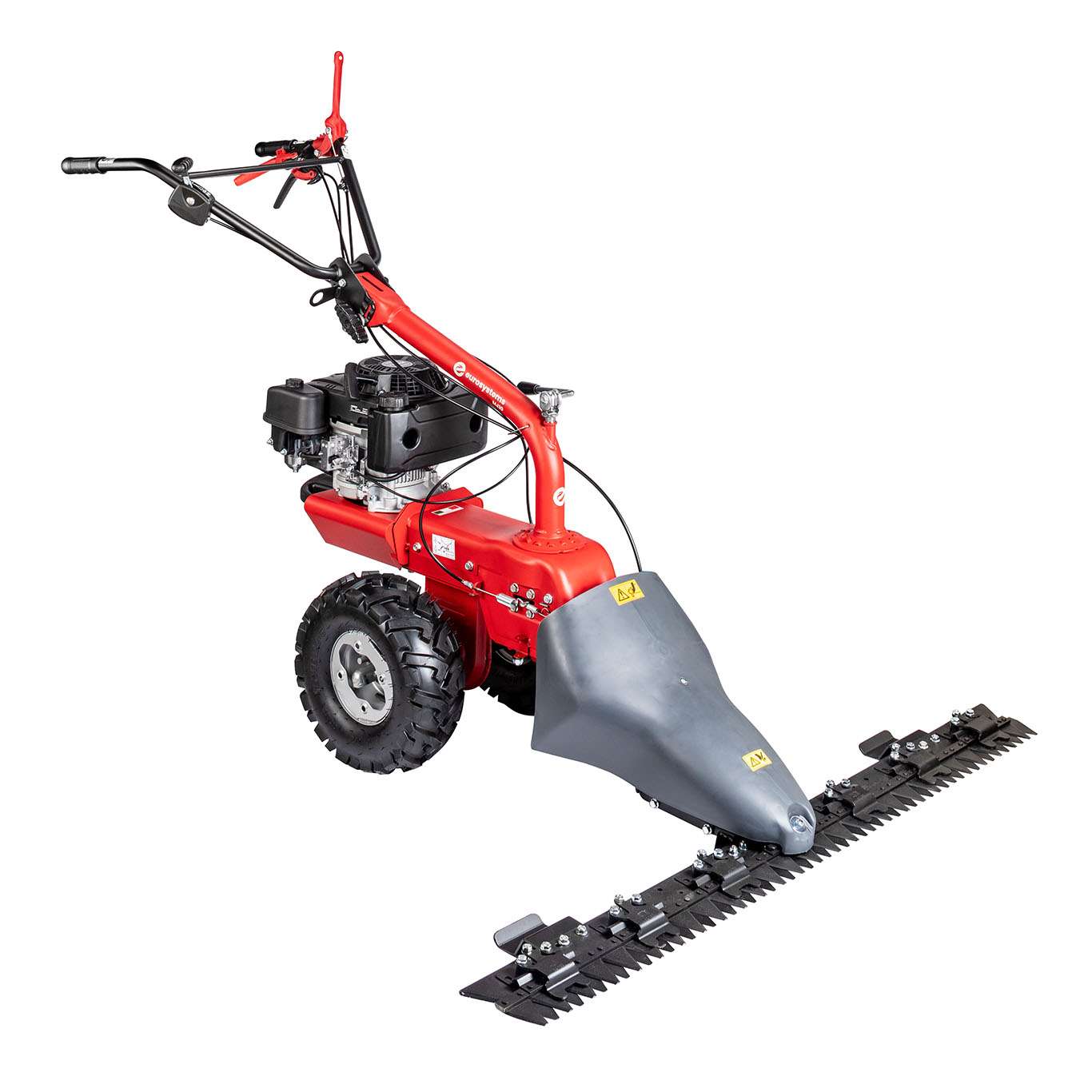

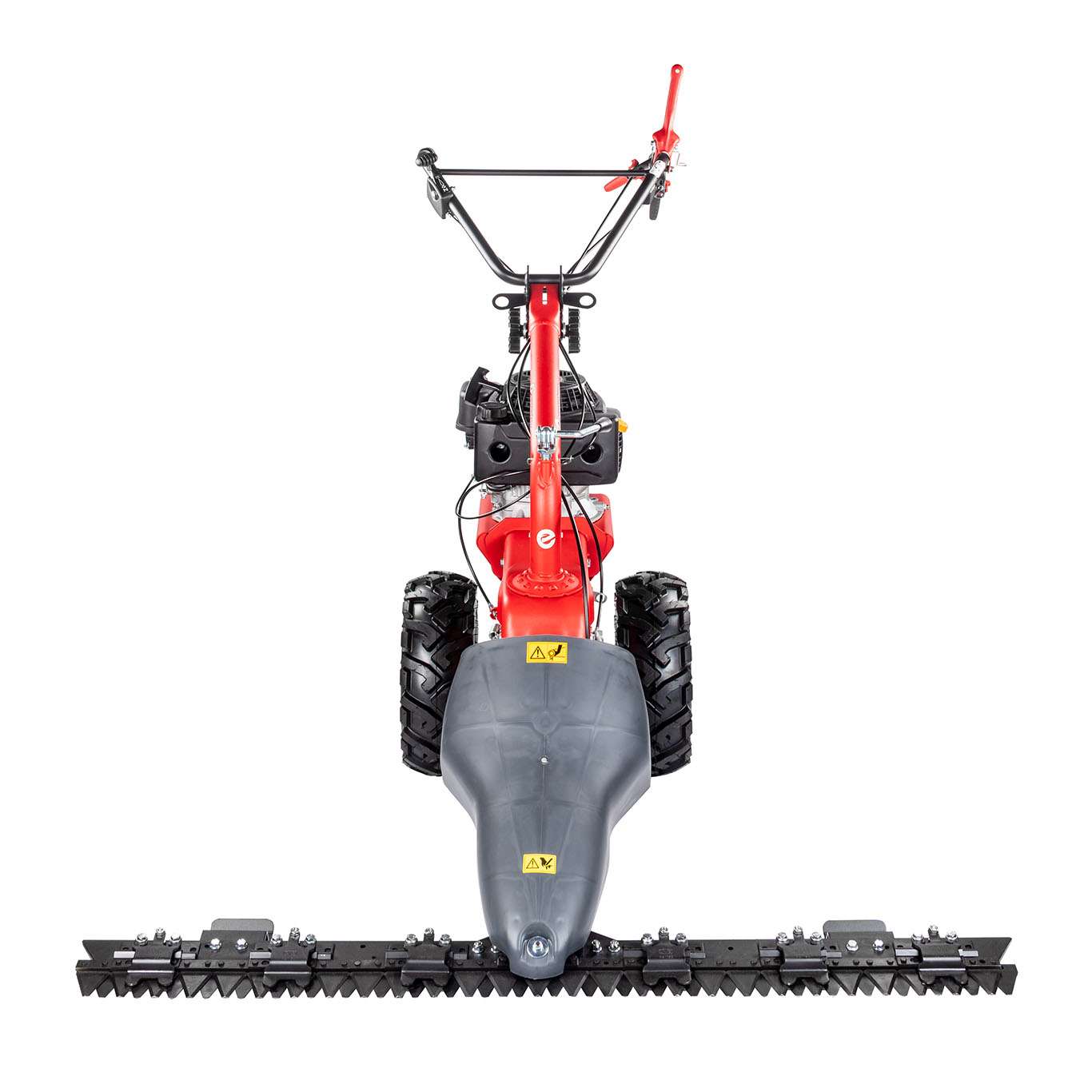

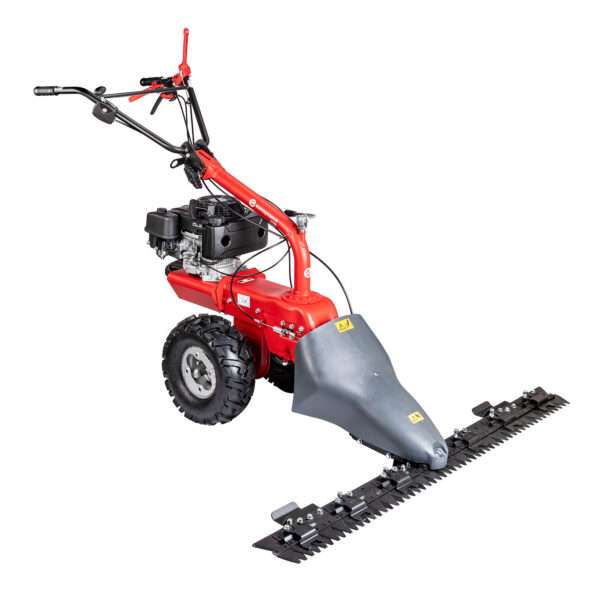

M410
Even more powerful, even more high-performing: the new flagship of the Eurosystems range.
Designed for the most demanding users, this walk-behind mower represents the highest level of performance in the range.
The 140 cm cutting bar allows fast operation even on large areas, significantly reducing working time and increasing productivity.
The dual-blade cutting system, with both upper and lower blades in motion, ensures a clean, precise and uniform cut — ideal for promoting healthy grass regrowth even under the most demanding conditions.
Robust, reliable and engineered for intensive use, it is equipped with a high-power engine that guarantees continuous operation, ease of use and maximum working efficiency, even on challenging terrain.
The ideal choice for those who demand top performance with no compromises.
Cutting movement: bilama
1 engine model
Recommended use: up to 10.000 sqm
DOWNLOAD
TECHNICAL SHEET- Technical features
- Engines
- Optionals
Technical features
| Trasmission |
endless screw in oil bath and belt |
|---|---|
| Gear-speed |
FS + R, forward speed and reverse |
| Speeds |
FS: 2,76 km/h – RS: 1,9 km/h |
| Handlebar |
adjustable in height and by side |
| Driving levers |
ergonomic with built-in safety system |
| Tool |
cutter bar |
| Movement |
double blade |
| Cutting |
working height 3 cm997 strokes / minworking height 140 cm |
| Other |
sheet metal skids, floating grass deflector |
| Driving wheels |
tyres, tractor profile 15×6.00-6" |
| Weight |
85 Kg |
| Dimensions |
Engines
 |
EURO 224 OHVPower supply: gasoline Starting systems: recoil Displacement: 224 cc Power: 4,35 kW Fuel tank: 1,4 liters |
Optionals
 |

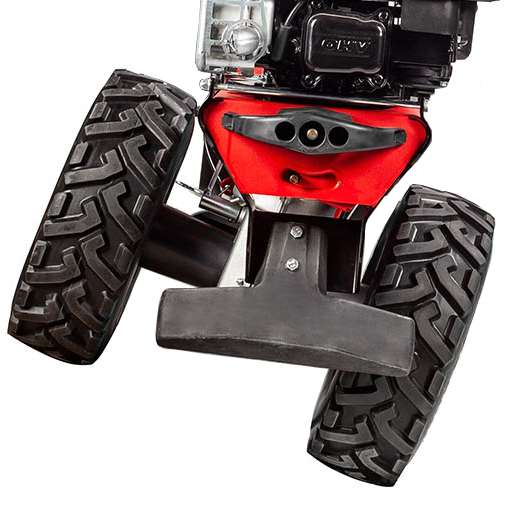

SLOPE KITDescription: 11 kg ballast with support Use: to laterally work on steep terrains up to 45° |
 |
IRON WHEELSDescription: wheels extension iron-made Use: soft grounds, suitable to work on steep terrains |
 |

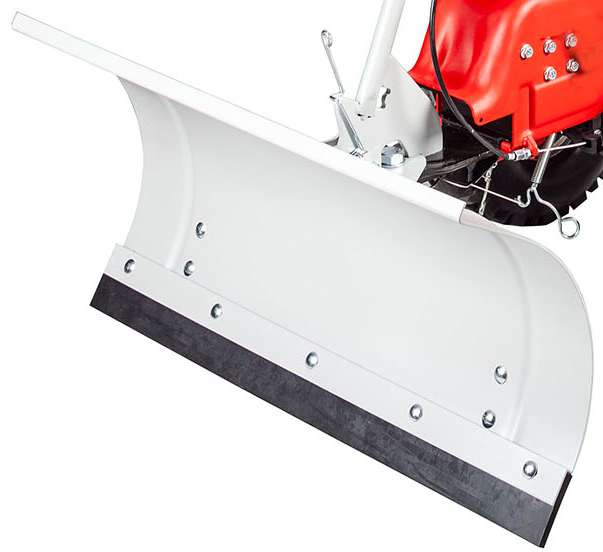

SNOW BLADEOperation: front blade with quick coupling Frame: in sheet metal Working width: 85 cm Adjustments: lateral ± 30° Net weight: 18 Kg Dimensions: 90x29x45 (h) cm |
 |
SNOW CHAINSDescription: iron snow chains for tractor wheels 15×6,00-6″ |
